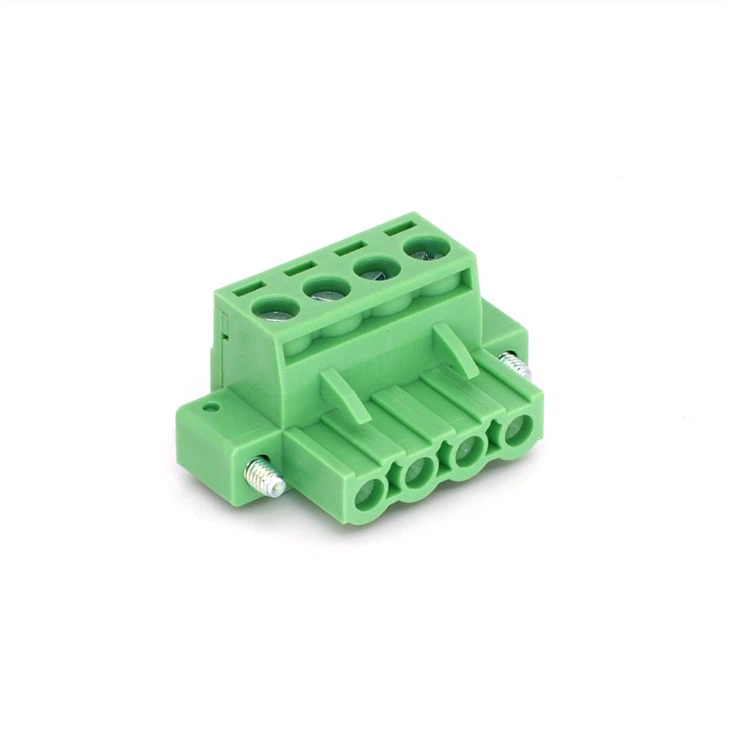

5.00mm Pitch Plug In Terminal Block For PCB
1.ROHS, CE, UL, approved and qualified for export.
2.Made of PA66,UL94V-0
3.Good performance in quick wire/cable connection
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
5.08 pitch YC101-508 2-24 poles Electrical Screw Plug in Mechanical Terminal Block
Product Features:
1.ROHS, CE, UL, approved and qualified for export.
2.Made of PA66,UL94V-0
3.Good performance in quick wire/cable connection
|
Material and plate |
Electrical Specifications |
||
|
Crimping frame |
Brass nickel plate |
Rated Voltage |
300V |
|
Plastic Parts |
PA66,UL94V-0 |
Rated Current |
16A |
|
Screw |
M3,steel zin plate |
Contact resistance |
20MΩ |
|
Color |
Green |
Insulation resistance |
5000 MΩ DC500V |
|
Working Conditions |
Insulation withstand voltage |
AC2000V/1Min |
|
|
Operation temperature |
-40°C ~150°C |
Wire range |
28-12AWG 2.5MM2 |
|
Instantaneous temperature |
250°C 5SEC |
Stripping Length |
5-7MM |
DERKS provides PCB screw terminal blocks, Solderable terminal blocks, large current terminal blocks, din rail terminal blocks, pluggable terminal blocks, signal controller enclosure housing, customized products can be arranged if provided accurate drawings, you are welcome to do so.
Newly easy and fast connection technology, helps to save 60% time on connection, greatly improves working efficiency.
Phosphor Bronze used for conductive parts, anti-corrosion plating, shrapnel adopts imported stainless steel, provides greater pulling force, imported PA66 raw material, flame retardant grade V0, maximum working temperature up to 105 degree, prolongs the working life span, minimize your worries and concerns.
