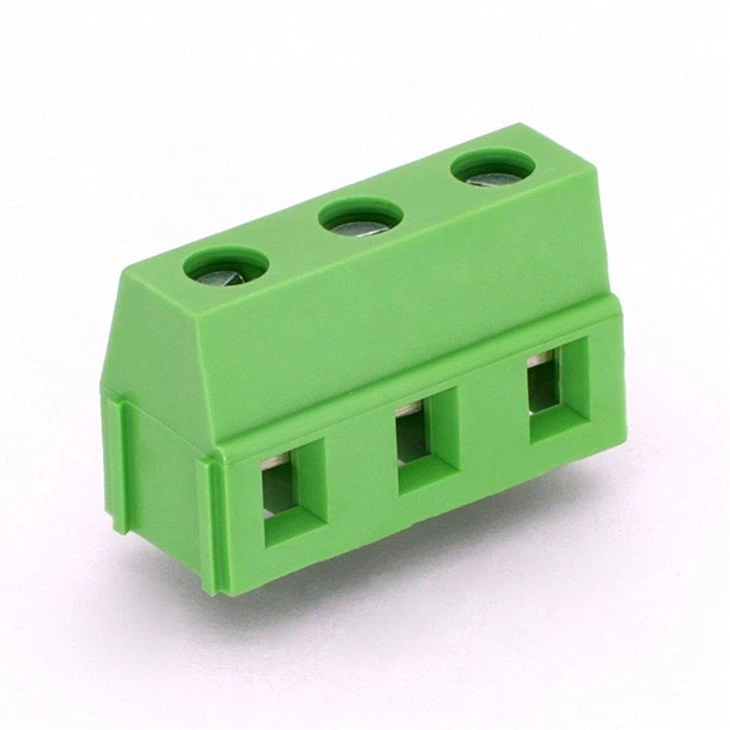

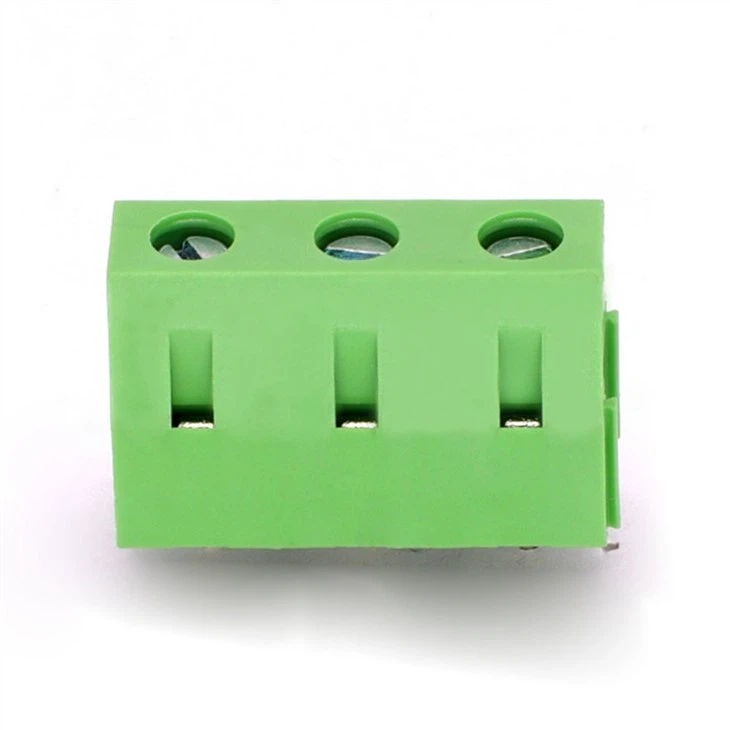

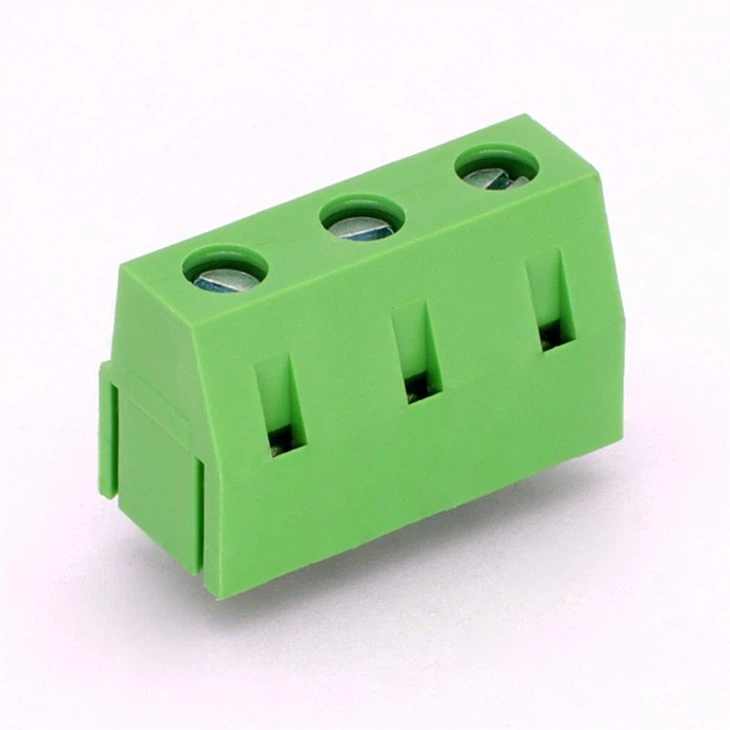

PCB Screw Type Connector
Crimping frame: Brass nickel plate
Plastic Parts: PA66,UL94V-0
Screw: M2,steel zin plate
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Zhejiang Deerkesi Electrical Co.,Ltd was established in 2006.professional manufacturer of terminal blocks, owns 5,000-10,000 square meters, 8 production lines, including moulding machines, auto/manual -assembly workshops.
OEM Service Offered, Design Service Offered, Buyer Label Offered and other customized products, online/offline business trade.
Production capacity of 100000 pcs/day.
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 16A |
Screw | M2,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-12 AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
FAQ:
Q: What kind of terminal blocks can you supply?
A: We can supply 5 main series: Screw terminal blocks, plug in terminal blocks, terminal headers, spring terminal blocks, large current terminal blocks
Q: I couldn’t find the product on your catalog, can you design and develop the product based on my needs?
A: We can do OEM, ODM service, according to your requirements, and of course, extra costs are needed for the procedure.
Q: Can you make customized products and required packing?
A: Yes, we have successfully made lots of customized products for our customers since 2006.
On packing, customized ones can be made based on exact requirements.
