PCB Screw Connector
Crimping frame: Brass nickel plate
Plastic Parts: PA66,UL94V-0
Screw: M2,steel zin plate
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

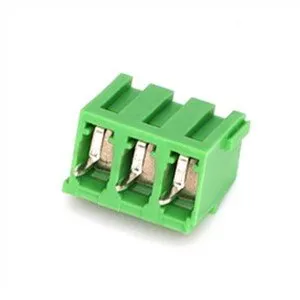

YB312-500 DERKS European PCB Wire Cage Terminal Block 5.00mm 300V 16A
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 16A |
Screw | M2,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-12 AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
FAQ:
Q: I couldn’t find the product on the catalog, are you able to make the product required?
A: We can do OEM, ODM service, based on your requirements.
Q: Are the customized products and packages acceptable for you?
A: Yes, we have successfully made lots of customized products for our customers since 2006.
On the packing, customized ones can be provided based on requirements.
Q: Can you provide samples for the first test? Are the samples free?
A: Yes, we can provide samples if needed, and 1-3 pieces are for free to test the quality
Q: What is your delivery time?
A: We have stocks of most models. Small batches can be shipped within 3 days. If not, we will arrange production and delivery within 7 days, depending on the exact quantity!
