Direct Welding Pluggable Connector for PCB
Crimping frame: Brass nickel plate
Plastic Parts: PA66,UL94V-0
Screw: M2,steel zin plate
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

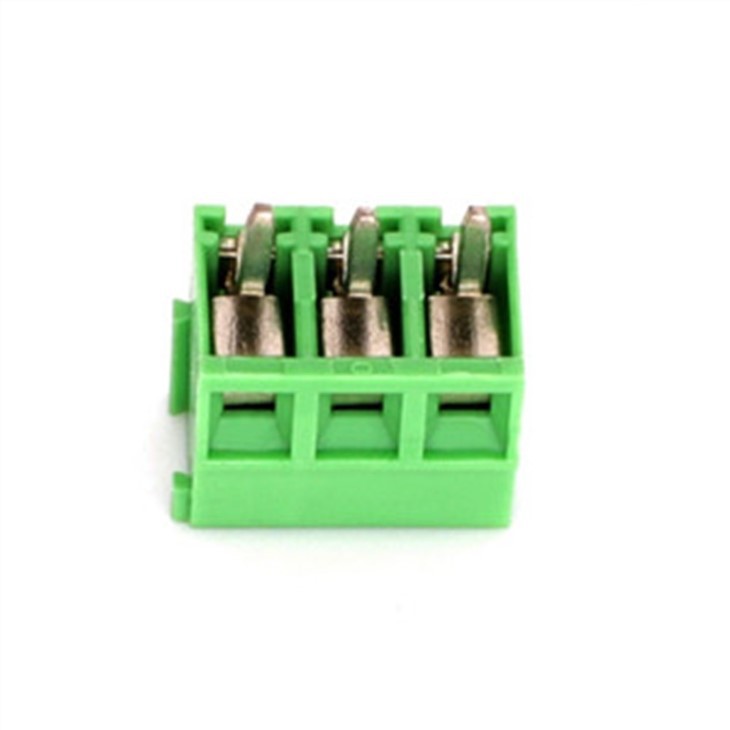

3.50mm pitch YB332-350 terminal connector PLC terminal block with brass nickel plate contact
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 10A |
Screw | M2,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-16 AWG 1.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 3-5MM |
Q: Do you have a catalog?
A: Yes, we have our latest product catalog. We will send it to you upon your requirement.
Q: What kind of terminal blocks do you offer?
A: 5 main series: Screw terminal blocks, plug in terminal blocks, terminal headers, spring terminal blocks, large current terminal blocks.
Q: Can you provide samples? Are the samples free?
A: Yes, we can provide samples if needed, and 1-3 pieces are for free to test the quality, and the express fees are negotiable.
Q: What kind of payment do you accept? Can i pay in CNY?
A: We accept T/T, and ALIBABA online payment, USD, CNY and other currencies are also acceptable, if you require so.
Easy and fast connection technology, helps to save 60% time on connection, greatly improves working efficiency of operators.
Phosphor Bronze used for conductive parts, anti-corrosion plating, shrapnel adopts imported stainless steel, provides greater pulling force, imported PA66 raw material, flame retardant grade V0, maximum working temperature up to 105 degree.
More than 20 years in the industry guarantees the quality, and after sales service, you can count on us with our profession.
